RIO THEATRE SOUND SYSTEM SPECIFICATIONS AS OF JANUARY 2025

Front of House:
Allen & Heath SQ 7 with 40 mono inputs + 8 playback and USB inputs Includes Allen& Heath DX168 16 in 8 out Portable DX expander


1 x TC electronics M1 Reverb unit

1 x TC electronics D2 Delay unit

1 x Yamaha SPX 990 multi effect unit


Main Speakers:
6 per side L’Acoustic DV-Dosc line array


2 per side YorkVille (RCF drivers) 18" subs

System is Tri Amped with an XTA DP226 Speaker Management Processor with about 10,000 watts of QSC PLX amps
1 per side passive EAW KF 300 12”x1” front fills at the sides of the stage (mono)
4 x L’Acoustic 5XT Passive 2 way Lip of stage fills (mono)

AC power :
The Rio Theatre does NOT have 3 Phase power on Cams

The audio AC service consists of 6 x 20 amp circuits ( 2 for stage power, 2 for Monitor system and 2 for Power at FOH and PA amps. The two hot legs of this single phase cam service are fuse protected at 70 amps per leg.

The House lighting system is on Breaker Box type service located in the attic with the lighting dimmers. There is no way to tie into this service , it is all Edison. We can accommodate a modest touring floor light package with up to 4 x 20 Amp circuits with standard Edison wall outlets.

Monitors:
The house has 11 EAW SM159zi ( 15" x 1") monitors and 9 channels of QSC (PLX model ) amps for monitors for a total of 9 amp channels Plus Cue mix amp Up to 12 stereo or mono mixes

Monitor desk is

Allen & Heath SQ 7 with 48 mono inputs
 Includes Allen& Heath DX168 16 in 8 out

Snake and Splits :
42 channel split to FOH and to Monitors ( Monitor split is to stage right but will reach stage left )
1 x 250’ EtherCon Cat6 cable ( this can reach both sides of the stage and our Mixing Platform at FOH )


There is a 16 x 4 channel send snake at FOH to Stage right .

Sub Snakes: 3 x Whirlwind 12 input sub snakes 2 up stage and one down stage left. 1 x 6 input Whirlwind subspace at down stage right


Microphones :
SHURE : sm-58 x 16
 Beta 58 x 3

SM-57 x12
55SH x 1

2 Shure Wireless Receivers (SLX4D) Plus 2. X SM58 Hand
Held (SLDX2) and 2x (SLDX1) Belt pack transmitters with Shure over ear mic elements
B-52 x 1
 Beta-91 x 1
 Sm-7 x 2
Crown PZM
Audix : adx-50 x 2


ADK small diaphram condensers x 2


ADK large diaphram condensers x3 DIRECT BOXES
BSS active x 5


Whirlwind active x 2

CBI x 3 PASSIVE Rolls, x 2 PASSIVE Art stereo isolation transformers

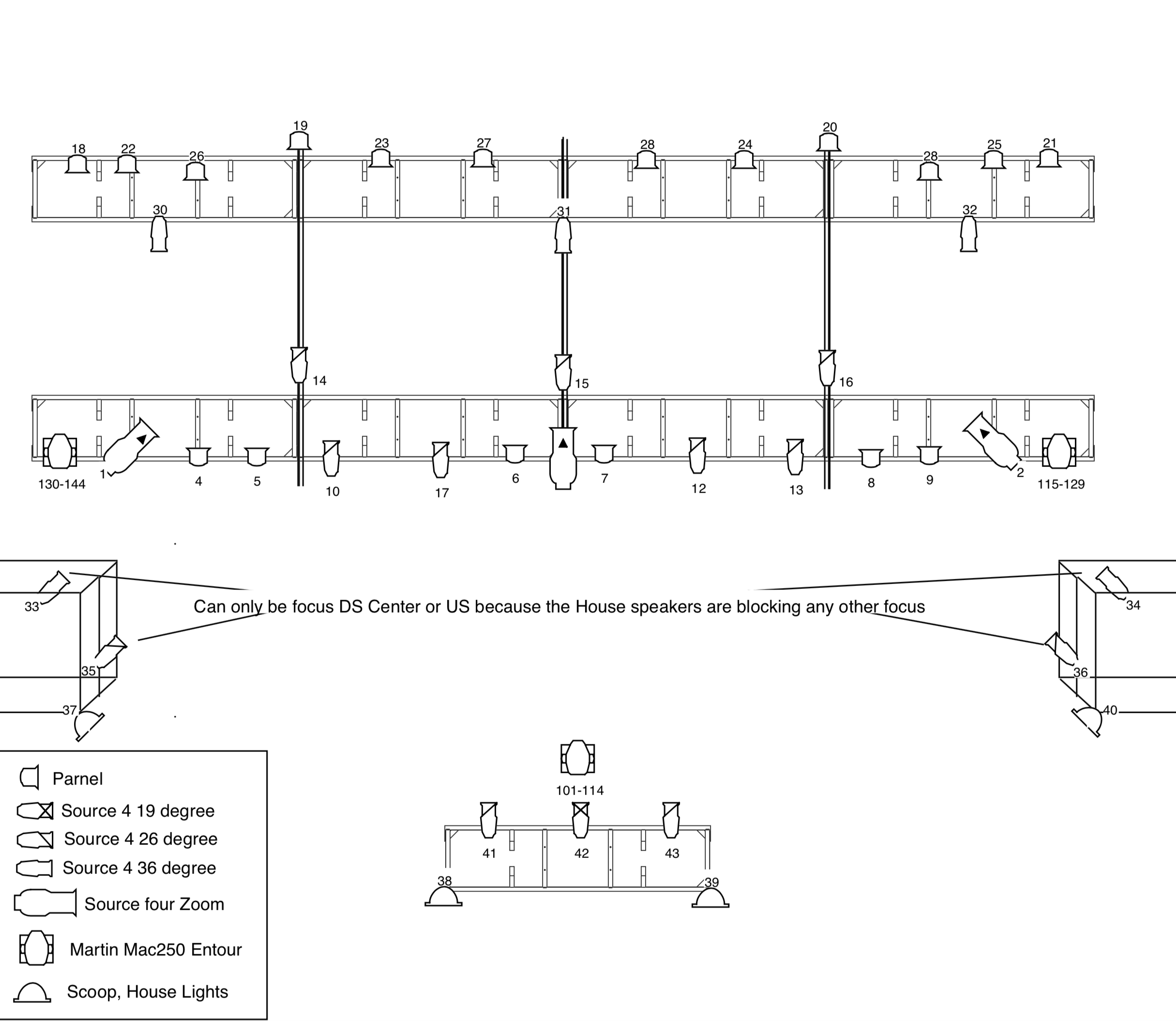

Lighting Plot - 2017
The RIO lighting plot must be restored after every show if changes have been made.

2 Source Four 19 degre 575W
6 Parnel 575W front of the stage wash
3 specials Source Four 26 degre 575W
6 parnel 575W over the stage as over head or back light
2 Source Four 26 degre 575W (Ladder House Right) 3 Source Four 36 degre 575W (Ladder House Right)
1 Parnel 575W ( Ladder House Right )
2 Source Four 26 degre 575W (Ladder House Left) 2 Source Four 36 degre 575W (Ladder House Left)
2 Parnel 575W (Ladder House Left)
3 MARTIN 250 MOVING LIGHTS

Lighting console : ETC INSIGHT 3

Projection system : Christie WU12K-M WUXGA 3DLP Projector
